Welcome
to Multico's Product section where you can find the different types of woodworking mortisers Multico has to offer.
The Multico name is synonymous with hollow chisel mortising. Not surprising, since we have been manufacturing them for over 60 years. In 1989 we introduced the World's first bench mortiser (the PM12) and made availabel to all market sectors a machine which had been the perserve of the comercial professional.
Since 1989 we have continued to develop the bench mortiser concept and now offer the equally successful PM16 and PM20 machines.
All these Machines can mortise both hard and soft woods, producing square holes. They can slot mortise and be used as a drilling machine with the addition of a simple conversion kit.
Multico's PM12 MORTISER
.JPG) PM12

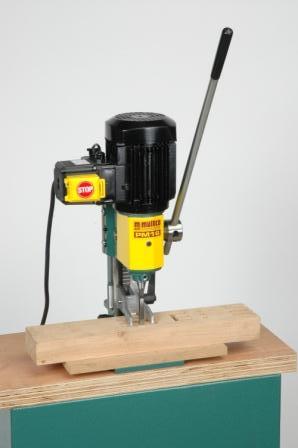

Multico's PM16 MORTISER
 PM16
Multico's PM20 MORTISER
.JPG) PM20
|
PM 12 |
PM 16 |
PM 20 |
| Max Timber Height (mm) |
120 |
120 |
200 |
| Max Timber Width (mm) |
- |
- |
225 |
| Chisel Range |
6-12 |
6-16 |
6-20 |
| Vertical Stroke (mm) |
120 |
120 |
120 |
| Horizontal Stroke (mm) |
- |
- |
196 |
| Lateral Stroke (mm) |
- |
- |
60 |
| Motor |
1/2 hp |
3/4 hp |
3/4 hp |
| Speed (rpm) |
2850 |
2850 |
2850 |
| Weight (Kg) |
20 |
23 |
50 |
| Packed Dimensions (cm) |
32x28x44 |
37x44x31 |
43x57x68 |
|
